Remote Power Supply for Fire Alarm System in Houston, TX

Remote Power Supply in Houston TX

Fire Alarm Houston provides remote power supply in Houston, TX. The FCPS-24FS6 and FCPS-24FS8 is a compact, cost-effective, 6 and 8-amp remote power supply with battery charger. The FCPS-24FS6 and FCPS-24FS8 may be connected to any 12 or 24-volt Fire Alarm Control Panel (FACP) or may be stand alone.

Primary applications include notification appliance (bell) circuit (NAC) expansion (to support ADA requirements and NAC synchronization) or auxiliary power to support 24-volt system accessories.

Overview of Fire Alarm Remote Power Supply in Houston:

The FCPS-24FS8 provides regulated and filtered 24 VDC power to four notification appliance circuits configured as either four Class B (Style Y) or Class A (Style Z, with ZNAC-4 option module). Alternately, the four outputs may be configured as all non-resettable or all resettable or two non-resettable and two resettable. The FCPS-24FS6 and FCPS-24FS8 also contain a battery charger capable of charging up to 18 Amp Hour batteries.

If you are looking to contact the right company for The fire alarm in the Houston, Texas area; give us a call now at 832-626-7837 or complete the form for a quote.

Features of the Fire Alarm Power Supply:

  • UL Listed NAC Synchronization using System Sensor, Wheelock or Gentex (Commander Series) appliances.
  • Cascadable up to 10 power supplies (four with Gentex) with strobe timing maintained.

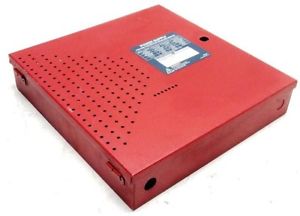

Fire Alarm Power Supply
Remote power supply in Houston, TX
  • Operates as a sync follower or a sync generator (default).
  • Contains two, fully-isolated input/control circuits (triggered from FACP Notification Appliance Circuit [NAC expander mode] or jumpered permanently on [standalone mode]).
  • Optional mounting kit, P/N 90286, to internally house addressable SLC control module (CRF-300 or CMF-300) for the alarm activation.
  • Four Class B (Style Y) or four Class A (Style Z) (with ZNAC-4 Module) Notification Appliance Circuits.
  • 6.0 A full load output (3.0 A maximum per circuit) in NAC expander mode (UL 864).
  • 4.0 A continuous output in stand-alone mode (UL 1481).
  • In stand-alone mode, output power circuits may be configured as resettable (reset line from FACP required) or non-resettable or a mix of two and two.
  • Fully regulated and filtered power output (optimal for powering four-wire smoke detectors, annunciators and other system peripherals requiring regulated/filtered power).
  • Power-limiting technology meets UL power-limiting requirements.
  • Form-C normally-closed trouble relay.
  • Fully supervised power supply, battery and Notification Appliance Circuits.
  • Selectable earth fault detection.
  • AC trouble report selectable for immediate or 8 hour delay.
  • Works with virtually any UL 864 fire alarm control which utilizes an industry-standard reverse-polarity notification circuit (including unfiltered and unregulated bell power).
  • Requires input trigger voltage of 9.0 - 32 VDC.
  • Self-contained in compact, lockable cabinet (15" [38.1 cm] H x 14.5" [36.8 cm] W x 2.75" [7.0 cm] D).
  • Includes integral battery charger capable of charging up to 18 AH batteries. Cabinet capable of housing 7.0 AH batteries.
  • Battery charger may be disabled via dip switch for applications requiring larger batteries.
  • Fixed, clamp-type terminal blocks accommodate up to 12 AWG (3.1 mm²) wire.
